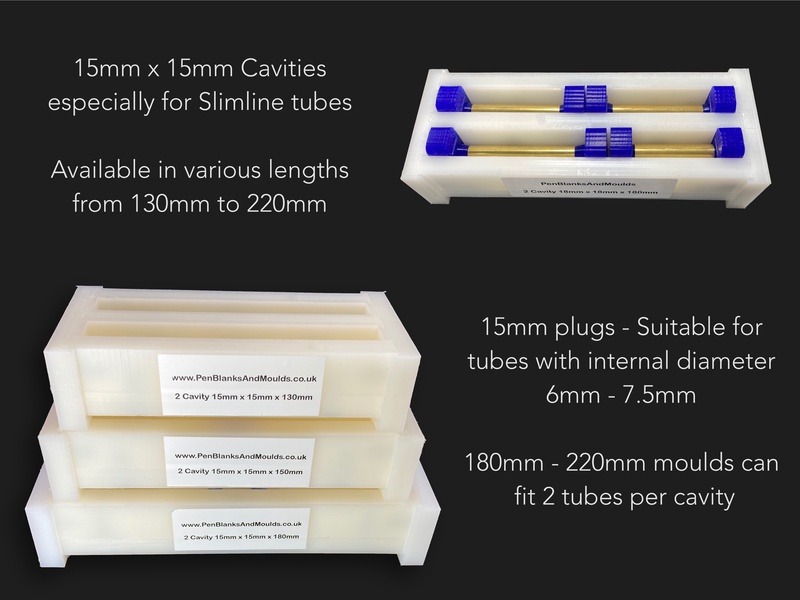

*New* 2 Cavity 15mm x 15mm Casting Moulds
These 2 Cavity Pen Blank Moulds are available in various lengths and are ideal for casting Narrow 15mm x 15mm blanks for Slimline & Similar Pens, saving a substantial amount of resin compared to 18mm & 20mm moulds (note internal dimensions are 20mm x 15mm to allow an additional 5mm clearance on the height to help prevent spillages).
Can also be used in conjunction with our new 15mm Tube-In-Mould Plugs for Label/Tube casting of Slimline & other narrow tubes. With our 180mm long moulds you can get 2 Slimline Tubes in each cavity using our Tube-In-Mould plugs.
For larger tubes we recommend using our 18mm or 20mm moulds & Tube-In Mould Plugs, or our dedicated Less-Resin moulds.
Note - Tube-In-Mould plugs sold separately, click here to view and order
These moulds contain a removable silicone bung in each cavity which makes de-moulding easier so there should be no need to dismantle the mould (180mm and longer have two bungs in each cavity which aids demoulding when Label/Tube casting 2 tubes per cavity).
Available Lengths:
130mm long (external dimensions 40mm x 72mm x 154mm)
150mm long (external dimensions 40mm x 72mm x 174mm)
180mm long (external dimensions 40mm x 72mm x 204mm)
200mm long (external dimensions 40mm x 72mm x 224mm)
220mm long (external dimensions 40mm x 72mm x 244mm)
Approx amount of resin required for each cavity:
130mm long - 30ml
150mm long - 34ml
180mm long - 41ml
200mm long - 45ml
220mm long - 50ml
We try to stock the most popular moulds, but due to the extensive range of sizes we offer, we are unable to stock all of them. Any moulds showing as 'out of stock' can still be ordered, and will be made to order, usually within 1-3 working days. If you don't see the mould you are looking for please Contact Us as we are constantly adding to our range of moulds and we can also make custom moulds.
