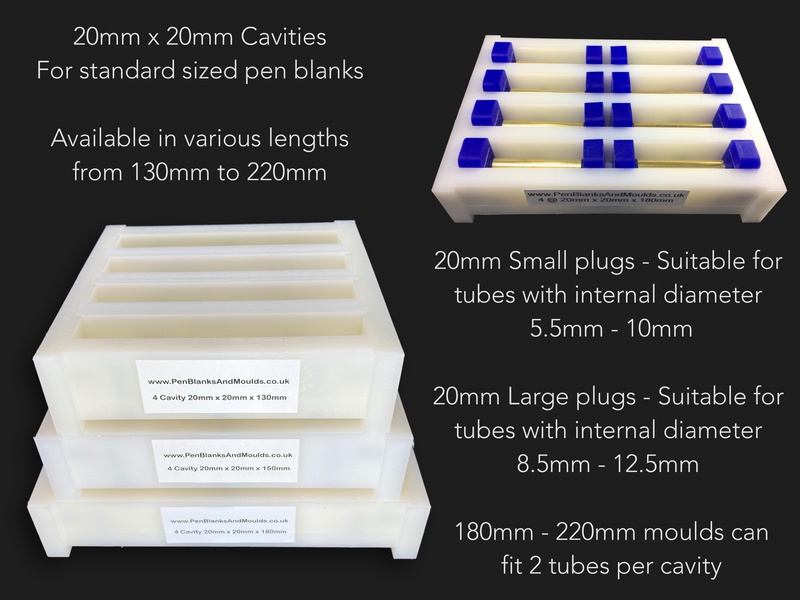

4 Cavity 20mm x 20mm Pen Blank Moulds
These 4 Cavity Pen Blank Moulds are available in various lengths and are ideal for casting 20mm x 20mm blanks (note internal dimensions are 25mm x 20mm to allow an additional 5mm clearance on the height to help prevent spillages). Can also be used in conjunction with our Tube-In-Mould plugs for Label/Tube-In-Mould casting.
With our 180mm long mould you can easily get 3 pens such as Sierras or two of the long tube kits from a single blank, or if using for Tube-In-Mould casting you can fit 2 tubes in each cavity with most pen kits.
We also have a 200mm long version with thinner end panels, so that it will fit into the 10l pressure pots from the likes of Spray Equipment & House of Resin.
Plus a 220mm long version with kitless & custom pen turners in mind, we can even make longer moulds as a special order if required (note: these will not fit a standard 10l pressure pot)
Note - Tube-In-Mould plugs sold separately, click here to view and order
These moulds contain a removable silicone bung in each cavity which makes de-moulding easier so there should be no need to dismantle the mould.
Available Lengths:
130mm long (external dimensions 45mm x 146mm x 154mm)
150mm long (external dimensions 45mm x 146mm x 174mm)
180mm long (external dimensions 45mm x 146mm x 204mm)
200mm long (external dimensions 45mm x 146mm x 212mm)
Note: Sizes below will not fit 10L Pressure Pots.
220mm long (external dimensions 45mm x 146mm x 244mm)
Approx amount of resin required for each cavity:
130mm long - 52ml
150mm long - 60ml
180mm long - 72ml
200mm long - 80ml
220mm long - 88ml
We try to stock the most popular moulds, but due to the extensive range of sizes we offer, we are unable to stock all of them. Any moulds showing as 'out of stock' can still be ordered, and will be made to order, usually within 1-3 working days. If you don't see the mould you are looking for please Contact Us as we are constantly adding to our range of moulds and we can also make custom moulds.
